MediShield™ Hydrophobic Lubricious (MSLIP) Coating

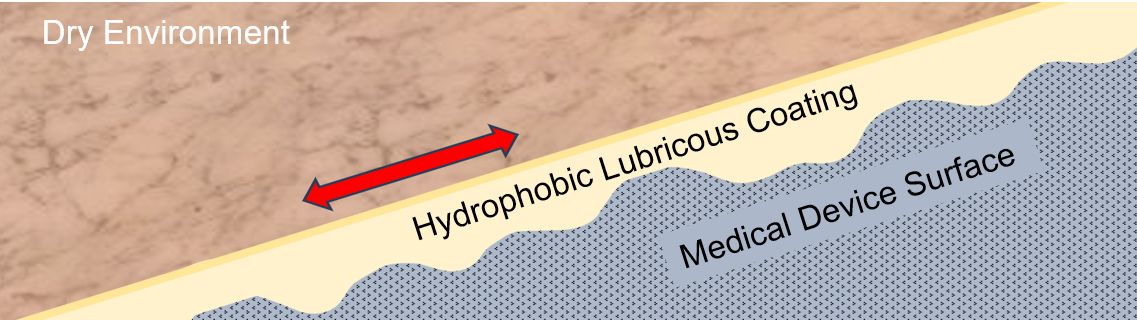

MediShield™ MSLIP Coating is engineered to provide exceptional dry lubricity for medical devices
that must slide smoothly against another surface - for example, a tube moving within an over-tube.
Its performance is comparable to PTFE coatings, while offering the added benefit of being completely
PFAS-free.
Benefits
- Biocompatible: Tested according to ISO 10993 standards
- Exceptional Dry Lubricity: Coefficient of friction comparable to PTFE
- Strong Adhesion: Durable bonding to many substrates
- Excellent Durability: Maintains lubricity performance through repeated testing
- PFAS-Free: Contains no per- and polyfluoroalkyl substances
Application Examples
- Endoscopy over-tube systems
- Catheter delivery systems
- Guidewire sheaths
- Insertion tubes for diagnostic instruments
| Test Parameter | Standard | PTFE | MSLIP Coating |
|---|---|---|---|
| Coefficient of Static Friction | ASTM D1894 | 0.08 - 0.12 | 0.08 - 0.12 |
| Coefficient of Dynamic Friction | ASTM D1894 | 0.07 - 0.11 | 0.07 - 0.11 |
| Tensile Strength (MPa) | ASTM D638 | 20 - 50 | 30 - 60 |
| Ultimate Elongation (%) | ASTM D638 | 200 - 400 | 300 - 500 |
| Water Contact Angle | 100° - 120° | 100° - 120° |
